Report item
Item specifics
  • Brand Name: DFRobot
  • Demo Board Type: Raspberry pi 2 b
  • Application: for arduino
  • Supply Voltage: 6~12V DC
Product Description
DFRobot 100% Genuine Three in One GPS/GPRS/GSM Shield Module V3.0, 6~12V Simcom Sim908 chip Quad-band GSM/GPRS engine + GPS satellite navigation Compatible with Arduino
Introduction
  • This is a GPS/GPRS/GSM shield from DFRobot. This shield with a Quad-band GSM/GPRS engine works on frequencies EGSM 900MHz/DCS 1800MHz and GSM850 MHz/PCS 1900MHz. It also supports GPS technology for satellite navigation. It\\\\\\\'s possible for your robot and control system to send messages and use the GSM network.
  • It is controlled via AT commands (GSM07.07 ,07.05 and SIMCOM enhanced AT Commands). And the design of this shield allows you to drive the GSM & GPS function directly with the computer and the board for Arduino. It includes a high-gain SMD antenna for GPS and a flexible GSM antenna 8.5cm(3.35") ( U.FL connector ).
  • This GPS/GPRS/GSM shield uses an embedded SIM908 chip from SIMCom. Featuring an industry-standard interface and GPS function, the combination of both technologies allows items, vehicles and people to be tracked seamlessly at any location and anytime with signal coverage.

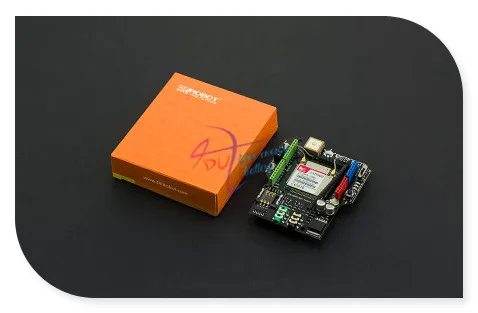

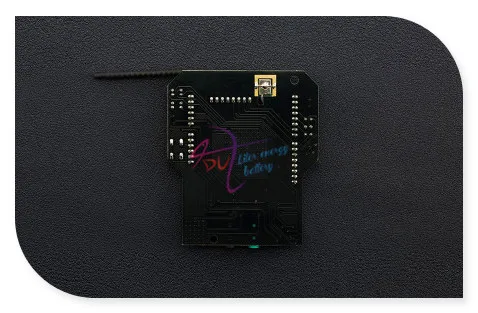

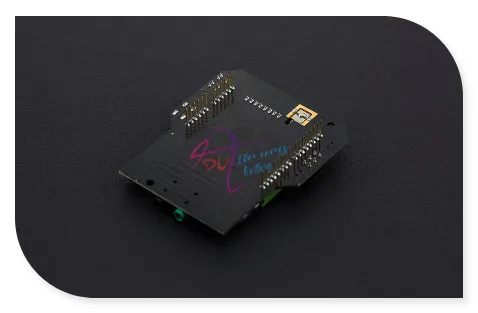

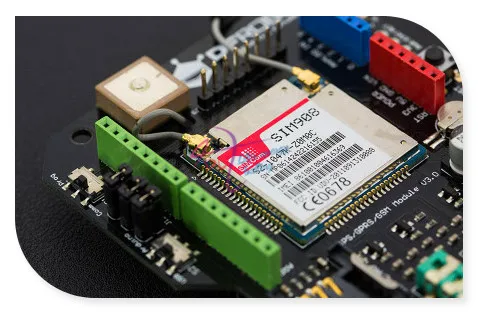

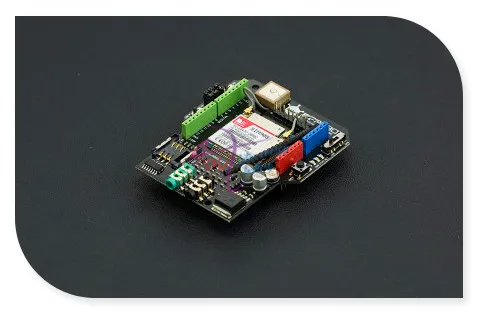

Photos
sui_000sui_002sui_003sui_004sui_005
Specification
  • Power supply: 6-12v
  • Low power consumption (100mA7v - GSM mode)
  • Quad-Band 850/900/18001900MHz
  • GPRS multi-slot class 10
  • GPRS mobile station class B
  • Compliant to GSM phase 2/2+
  • Class 4 (2 W 850/900 MHz)
  • Class 1 (1 W 1800/1900MHz)
  • Control via AT commands(GSM07.07 ,07.05 and SIMCOM enhanced AT Commands)
  • Support GPS technology for satellite navigation
  • Embeded high-gain SMD antennas for GPS & GSM
  • Directly support 4*4 button pad
  • USB/ the board for Arduino control switch
  • Programmable switch for Arduino
  • LED indicators for power supply, network states and working status
  • Board Surface:Immersion Gold
  • Switches:
    • S1 -- Programming mode / Communication mode
    • S2 -- Controlling interface: USB / for Arduino
  • Interfaces:
    • Embedded SIM card holder
    • Speaker & Mic Jack socket
  • Size: 81x70mm(3.19"x2.76")
  • Specifications for SMS via GSM / GPRS:
    • Point-to-point MO and MT
    • SMS cell broadcast
    • Text and PDU mode
  • Specification for GPS:
    • Receiver 42 channels, GPS L1 C/A code, High-performance STE engine
    • Sensitivity:
      • Tracking: -160 dBm
      • Cold starts: -143 dBm
    • Time-To-First-Fix:
      • Cold starts: 30s (typ.)
      • Hot starts: 1s (typ.)
    • Accuracy:Horizontal position: <2.5m CEP
    • Power consumption (GSM engine in idle mode):Acquisition 77mA,Tracking 76mA

M1

Documents
  • Wiki: //dfrobot.com/wiki/index.php/GPS/GPRS/GSM_Module_V3.0_(SKU:TEL0051)
  • Schematic: //dfrobot.com/image/data/TEL0051/GSM+GPRS+GPS%20SIM908%20V3.0.pdf
  • SiRF NMEA Protocol: //dfrobot.com/image/data/TEL0051/3.0/NMEA%20Reference%20Manual-Rev2.1-Dec07.pdf
  • AT Command manual: //dfrobot.com/image/data/TEL0051/3.0/SIM908_AT%20Command%20Manual_V1.01.pdf
  • SIM908_SIM548C_ATC_Comparison: //dfrobot.com/image/data/TEL0051/3.0/SIM908_SIM548C_ATC_Comparison_V1.00.pdf
  • SIM908 Datasheet: //dfrobot.com/image/data/TEL0051/3.0/SIM908_SIM548C_ATC_Comparison_V1.00.pdf
  • SIM908 Product Page: //simcom.us/product_detail.php?cid=1&pid=38
  • Youtube Video: //youtube.com/watch?v=6ryQ-aTnO6I&feature=youtu.be
  • Test library for Leonardo based boards: //github.com/DFRobot/GPS-GPRS-GSM-Shield-V3.0/tree/master/gps_gsm_sim908
