Item specifics
  • Brand Name: DFRobot
  • Demo Board Type: Raspberry pi 2 b
  • Application: for low-cost mini general purpose computing platform
  • Supply Voltage: 7~15V DC
Product Description
100% Genuine for Intel Edison module, 7~15V Dual core Dual threaded Atom 500MHz 1G/4G with Dual-band 802.11a/b/g/n Bluetooth 2.1/4.0 SPI/UART/I2C/PWM interfaces for low-cost mini general purpose computing platform
Introduction
  • What will you make?
  • The development platform for Intel Edisonis the first in a series of low-cost, product-ready, general purpose compute platforms that help lower the barriers to entry for entrepreneurs of all sizesfrom pro makers to consumer electronics and companies working in the Internet of Things (IoT). The development platform packs for Intel Edison a robust set of features into its small size, delivering great performance, durability, and a broad spectrum of I/O and software support. Those versatile features help meet the needs of a wide range of customers.
  • Note: This is a pre-order product. Shipping will start shortly at mid November.

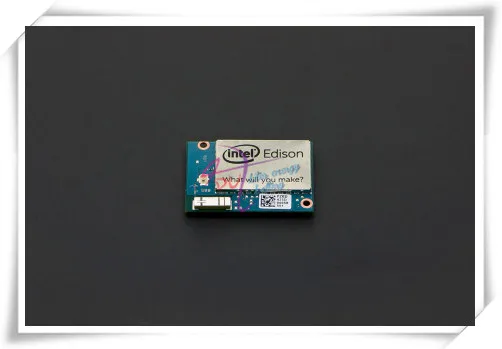

Photos
sui_0sui_2sui_3sui_4sui_5
Features
  • Uses a 22nm for Intel SoC that includes a dual core, dual threaded for Intel Atom CPU at 500MHz and a 32-bit for Intel Quark microcontroller at 100 MHz. It supports 40 GPIOs and includes 1GB LPDDR3, 4 GB EMMC, and dual-band WiFi and BTLE on a module slightly larger than a postage stamp
  • The module for Intel Edison will initially support development with the board for Arduino and C/C++, followed by Node.JS, Python, RTOS, and Visual Programming support in the near future
  • The module for Intel Edison includes a device-to-device and device-to-cloud connectivity framework to enable cross-device communication and a cloud-based, multi-tenant, time-series analytics service
Specification
  • CPU: 22nm for Intel SoC that includes a dual core, dual threaded for Intel Atom CPU at 500MHz and a 32-bit for Intel Quark microcontroller at 100 MHz
  • RAM: 1 GB LPDDR3 800MHz
  • Flash: 4GB eMMC and SDIO interface
  • GPIO: 70 pins
  • WiFi: Dual-band 802.11 (a/b/g/n)
  • Bluetooth: Bluetooth 2.1/4.0
  • USB: 1 USB-OTG
  • Other interfaces: SPI, UART, I2C, PWM
  • Working Voltage: 7 to 15 VDC
  • Power: Standby (No radios): 13 mW
  • Standby (Bluetooth 4.0): 21.5 mW
  • Standby (Wi-Fi): 35 mW
  • Size: 35.5mm*25.0mm*3.9mm
Documents
  • Edison Main Page: //inteI.com/content/www/us/en/do-it-yourself/edison.html
  • Getting Started with Edison: //communities.inteI.com/docs/DOC-23147
  • Edison - Software Downloads: //communities.inteI.com/docs/DOC-23242
  • Forum: //communities.inteI.com/community/makers/edison/forums
  • Support: //communities.inteI.com/community/makers/edison/support
Shipping List
  • for Intel Edison Module x1
