Item specifics
  • Brand Name: DFRobot
  • Demo Board Type: Raspberry pi 2 b
  • Application: for Raspberry Pi B+ / 2B / 3B / Raspberry pi Music Player
Product Description
DFRobot 100% Genuine X600 Expansion Board for Raspberry Pi B+ / 2 Model B / 3 Model B / Raspberry pi Music Player
Introduction
  • The X600 Expansion Shield is a highly cost-effective multimedia hat compatible with the Raspberry Pi Model B+, Raspberry Pi 2 Model B and newest Raspberry Pi 3 Model B. It uses an HDMI audio solution to give high-definition clear sound quality. It decodes and separates voices from HDMI signal, completely solving the poor quality problem with Raspberry Pi integrated sound card.
  • The hat supports digital audio 5.1 channel output and 2.0 channel analog audio output, supports Dolby digital AC-3, DTS, LPCM and other digital audio format outputs. Use your Raspberry Pi as a multimedia player, lossless audio player or a network radio. We recommend OS images such as Raspbian, Volumio, OSMC, PiMusicBox, etc.
m2
  • Note: Raspberry Pi is not included in the box.

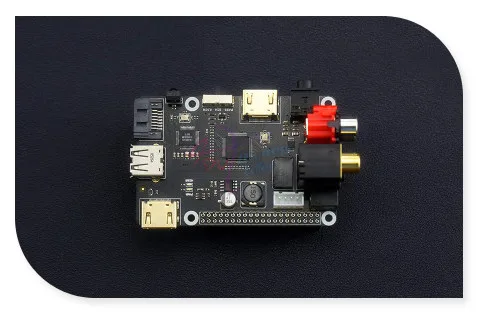

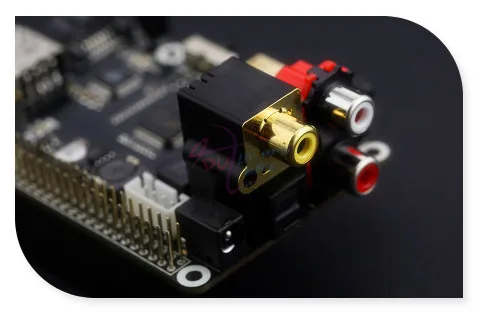

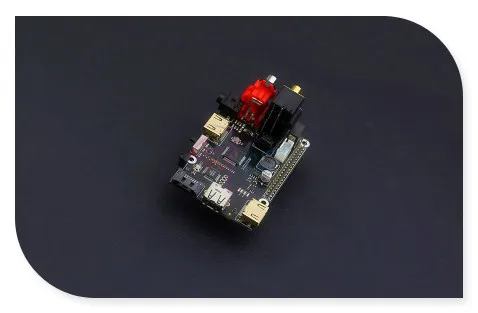

Photos

sui_0

sui_1sui_2sui_3sui_4
Specification
  • Input Voltage
    • 6V to 20Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi and SATA device
  • Audio & Video
    • Allows you to extract audio signals from HDMI of your Raspberry Pi
    • Converts HDMI audio to digital optical or Coaxial or stereo RCA analog
    • The SPDIF optical or coaxial audio output supports all audio formats up to 5.1CH Dolby Digital 5.1CH / AC3 & DTS 5.1CH audio
    • Extracts digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output or earphone jack
    • Provides the Best Flexibility through Three NEW Audio EDID Settings: Pass, 2CH and 5.1CH
    • Maintains surround format when converting to digital optical audio
    • Supports high definition input up to 1080p (24/60) Hz, output resolution follows input
    • Supports HDMI signal amplification and equalization output for repeater function
    • HDMI output supports all audio formats including more advanced Dolby Digital Plus, PCM5.1CH and beyond
  • SATA
    • Allows you to connect SATA devices to your Raspberry Pi
  • Wireless
    • Built in IR sensor (38KHz)
  • Misc
    • Power output socket
    • Directly connected on top of the Raspberry Pi using the board GPIO header pins
    • Solderless and no wires required
    • Extra 40-pin header of the R-Pi in order to support existing expansion boards
    • Suitable for Raspberry Pi Model B+, Raspberry pi 2 Model B and Raspberry Pi 3 Model B NEW!
  • Dimensions
    • 85 x 56mm (Same size as Raspberry Pi)
Documents
  • Driver Download and User Manual: //suptronics.com/Xseries/x600.html

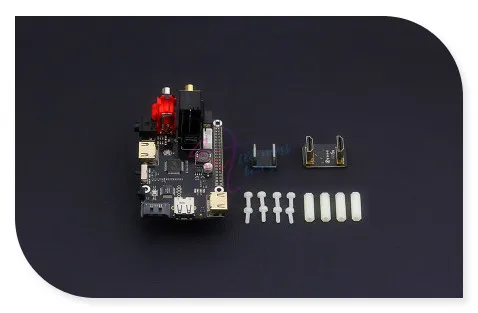

Shipping List
  • X600 expansion board x1
  • Nylon spacers (M3 x 20mm) x4
  • Nylon screws (M3 x 6mm) x8
  • USB adapter x1
  • HDMI adapter x1
