  • Model Number: T24+ ADP
  • Brand Name: Waveshare
  • Demo Board Type: Others
  • Manufacturer: Enplas
  • Power Input: 5V
  • ISP programming port: 10-pin/6-pin
  • Supported Devices: ATtiny24 SOIC14(150 mil), and other pinout compatible devices
  • Place of Origin: China (Mainland)
  • Frequency: Low frequency
  • Package: ATtiny24 SOIC14(150 mil)
  • Features1: External crystal can be connected via on board socket
  • Features2: All the MCU pins are accessible on expansion connectors
Product Description

ATtiny24A-SSU ATtiny24 ATtiny44 ATtiny84 AVR SOIC14 150 mil Programming Adapter Test Socket

Enplas IC Test & Burn-in Socket with a simple board, especially for AVR SOIC14(150 mil) package

Features

  • 10-pin/6-pin ISP Port for programming or testing
  • External crystal can be connected via on board socket
  • All the MCU pins are accessible on expansion connectors

Supported Devices

ATtiny24 SOIC14(150 mil) package and other pinout compatible devices of the sort

  • ATtiny24/ATtiny44/ATtiny84

Outline and Dimensions

Unit: mm
Part NumberPitchPinsApplicable IC Dimensions (REF.)Outside Dimensions (REF.)
ABCDEFGH
OTS-16-1.27-031.27146.0±0.23.9±0.15.0±0.2-2018--

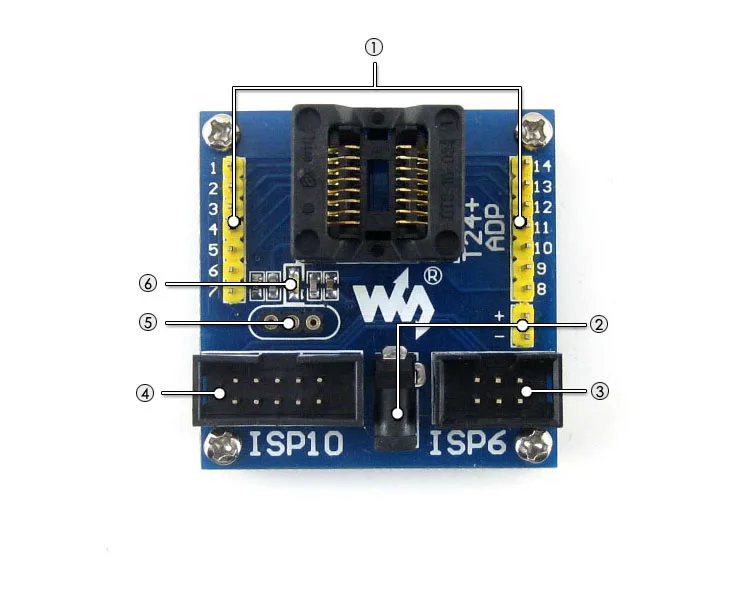

Photos

  1. All the MCU pins are accessible on expansion connectors
  2. Power Input
  3. 6-pin ISP Port
  4. 10-pin ISP Port
  5. External Crystal Socket
  6. Power LED

ISP Port Header Pinout

The T24+ ADP houses ISP headers for connecting a programmer. The header pinouts are shown in the figures below.

pinouts for 10-pin ISP Connector
Figure 1. 10-pin ISP header pinout
pinouts for 6-pin ISP Connector
Figure 2. 6-pin ISP header pinout

Downloads

Development resources:schematic, etc.
Wiki: waveshare.com/wiki/T24+_ADP


Package Contains

  1. T24+ ADP × 1
  2. USB power cable × 1
