Item specifics
  • Demo Board Type: Others
  • Brand Name: Waveshare
  • Model Number: T13+ ADP
  • Manufacturer: Enplas
  • Power Input: 5V
  • ISP programming port: 10-pin/6-pin
  • Supported Devices: ATtiny13 SOIC8(150 mil), and other pinout compatible devices
  • Place of Origin: Guangdong, China (Mainland)
  • Pitch: 1.27mm
  • Frequency: Low frequency
  • Package: AVR SOIC8(150 mil)
  • Features: All the MCU pins are accessible on expansion connectors
Product Description

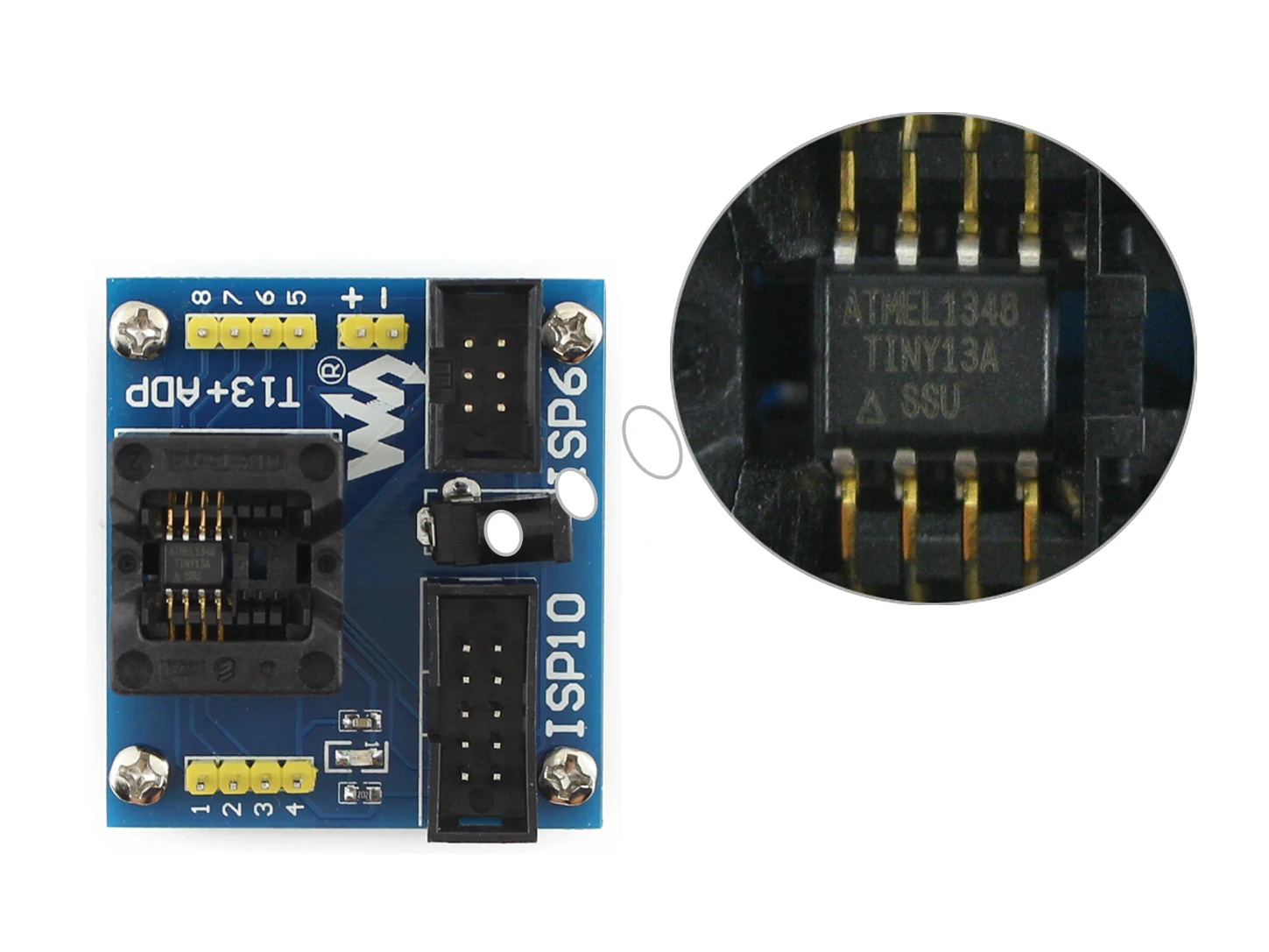

ATtiny13A-SSH ATtiny13A-SSU ATtiny13 SOIC8 150mil AVR Programming Adapter Socket Free Shipping



Enplas IC Test & Burn-in Socket with a simple board, especially for AVR SOIC8(150 mil) package

Features

  • 10-pin/6-pin ISP Port for programming or testing
  • All the MCU pins are accessible on expansion connectors

Supported Devices

ATtiny13 SOIC8(150 mil) package and other pinout compatible devices of the sort

  • ATtiny13/ATtiny12/ATtiny15/ATtiny25

Outline and Dimensions

Unit: mm
Part Number Pitch Pins Applicable IC Dimensions (REF.) Outside Dimensions (REF.)
A B C D E F G H
OTS-8(16)-1.27-03 1.27 8 6.0±0.2 3.9±0.1 5.0±0.2 - 20 18 - -

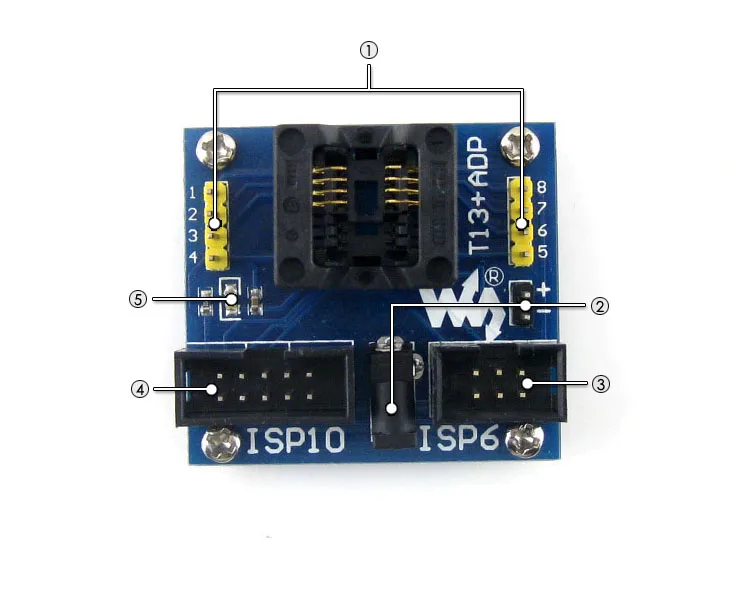

Photos

  1. All the MCU pins are accessible on expansion connectors
  2. Power Input
  3. 6-pin ISP Port
  4. 10-pin ISP Port
  5. Power LED



ISP Port Header Pinout

The T13+ ADP houses ISP headers for connecting a programmer. The header pinouts are shown in the figures below.

pinouts for 10-pin ISP Connector
Figure 1. 10-pin ISP header pinout
pinouts for 6-pin ISP Connector
Figure 2. 6-pin ISP header pinout



Downloads

Development resources:schematic, etc.
Wiki: www.waveshare.com/wiki/T13+_ADP


Package Contains

  1. T13+ ADP × 1
  2. USB power cable × 1
1
2










HTB1t3bCGpXXXXbNXXXXq6xXFXXXg





Packaging Details
  • Unit Type: piece
  • Package Weight: 0.15kg (0.33lb.)
  • Package Size: 20cm x 18cm x 10cm (7.87in x 7.09in x 3.94in)
